Kafka extension

Extension to quickly consult topics and consumers of kafka broker

Configuration

Name	Required	Default	Example	Description
configDirectory	Yes	~/.kafka/	/kafka-config/	Configuration directory containing env files

Environment file

Environment file must be a json in the configuration directory with following fields :

export interface KafkaEnv {
  // env name to display on raycast dropdown
  name: string;
  // to filter topics by keyword(s)
  filterTopics?: string[];
  // to filter consumers by keyword(s)
  filterConsumers?: string[];
  // kafka js configuration for broker, authentication, etc
  kafkaJs: KafkaConfig;
}

Following kafkaJS configuration is used by default :

const defaultConfiguration = {
  connectionTimeout: 10000,
  requestTimeout: 30000,
  logLevel: logLevel.ERROR
};

More info on configuring kafkaJS here

Example

{
  "name": "Dev",
  "filterTopics": [
    "my-prefix-for-dev"
  ],
  "filterConsumers": [
    "dev",
    "def"
  ],
  "kafkaJs": {
    "brokers": [
      "kafka-host:kafka-port"
    ],
    "sasl": {
      "mechanism": "plain",
      "username": "user",
      "password": "password"
    }
  }
}

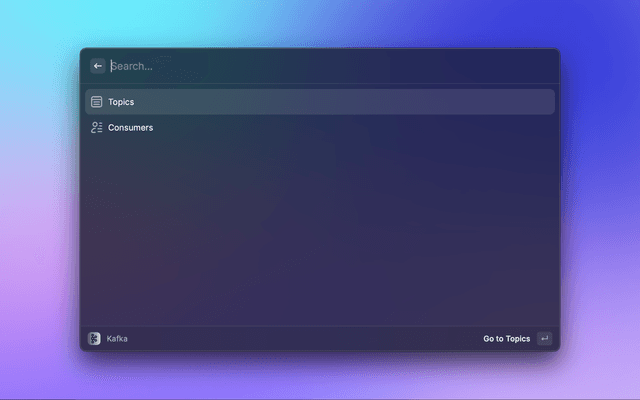

Kafka command

• List and consult topic configurations
• List consumers with state, members and overall lag

Configuration

Name	Required	Default	Example	Description
extractRegex	No	-	topic_(.*)_(.*)_(.*)	Regex to extract information from topic name
extractTitleGroup	No	-	1	Group to get from regex to display title
extractSubTitleGroup	No	-	2	Group to get from regex to display subtitle
extractMetadataNameAndGroup	No	-	Application=3	Extract metadata from regex

Note: in this example, with a topic named topic_NAME_OWNER_APP, the title would be NAME, the subtitle OWNER, and in the side panel we would have the following metadata Application=APP. If you don't set extractRegex full topic name will be displayed.

Kafka menu bar command

Have kafka in menu bar with background actualization every 5 minutes

Configuration

Name	Required	Default	Description
hideWithoutLag	No	true	Hide consumers without lag to avoid long lists
sendNotification	No	false	Send macos notification if at least one consumer has lag
notificationThreshold	No	1000	Notification threshold to not exceed to send macos notification (need sendNotification to be true)
